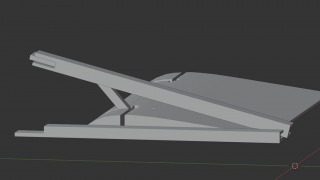

| edtherenderman | Cleveland Westland Whirlwind | Build | 28-Jan-22 08:29 |  | | Views : 717 | | Presenting the design for the fowler flaps. I looked on line for how they work on real aircraft and studied what available pictures I could find for the Whirlwind and came up this. There are two rails, one that runs along bottom of the wing, and one along the top. The flap has a pivot point in the leading edge that runs along the bottom rail. There is a bracket that is set into the flap about 1/3 of the way back from the trailing edge that has a pivot point in the flap and runs along the upper rail. As the flap extends back, the closing distance between the two rails forces the flap down. |
| David Duckett | Todays Hobbies F-16a Falcon | Build | 24-Jan-22 07:49 |  | | Views : 10308 | | In the paint shop becoming the YF-16 Prototype. |
|
