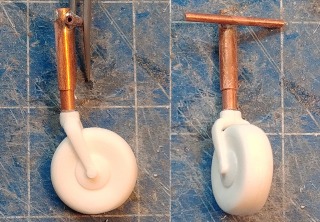

| edtherenderman | Cleveland Westland Whirlwind | Build | 30-Mar-22 11:21 |  | | Views : 3640 | | Here is the tailwheel, which also retracts. Much simpler process here. Simple horizontal pivot. Wheel and yoke assemble was created in 3D and printed using my FDM 3D printer. |

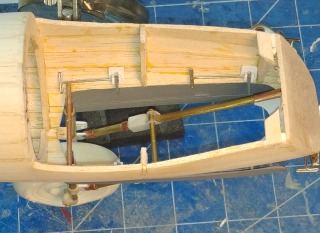

| edtherenderman | Cleveland Westland Whirlwind | Build | 30-Mar-22 11:21 |  | | Views : 645 | | Gear fully retracted in the Nacelle. Looking down into the top of the nacelle. |
|
| Hangar |
Aircraft |
Category |
Date |
Preview |

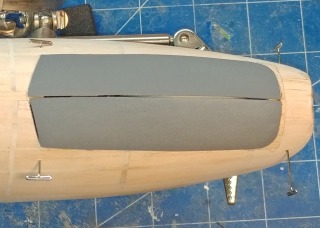

| edtherenderman | Cleveland Westland Whirlwind | Build | 30-Mar-22 11:20 |  | | Views : 593 | | Gear doors closed. Doors where created using the piece cut out of the nacelle as a buck, then vacuum formed styrene over the buck. The styrene was supper thin and flexible, so I built up the insides with many layers of tissue and EZ-Dope. The outsides where filled with spackling compound, sounded, tissued, doped and painted with sanding primer. I still need to add small magnets to keep the doors together when closed. |

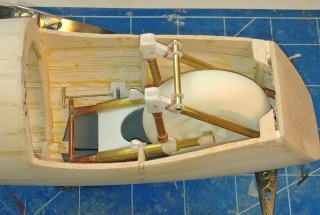

| edtherenderman | Cleveland Westland Whirlwind | Build | 30-Mar-22 11:19 |  | | Views : 568 | | Inside of nacelle looking down. You can see the hinges for the gear doors. The tee pins will be replaced with hinge pins before installing the nacelle on the wing. |
|
